Taikan HT-500B

A compact, very fast machine for drilling, tapping and light milling of small parts in volume.

Price on application · Get price and lead time →

Built for cycle time

The HT-500B comes from Taikan's B-Series of tapping centres, part of a tapping-centre range with more than 100,000 machines delivered worldwide. A 24,000 rpm BT30 spindle, 48 m/min rapids on all three axes and a 21-tool changer keep cycle times short on aluminium and small steel parts.

Key specifications

• Table size: 620 × 400 mm

• Travel X / Y / Z: 500 / 400 / 320 mm

• Spindle speed: up to 24,000 rpm

• Spindle taper: BT30

• Tool capacity: 21

• Rapid traverse X / Y / Z: 48 / 48 / 48 m/min

• Certification: CE

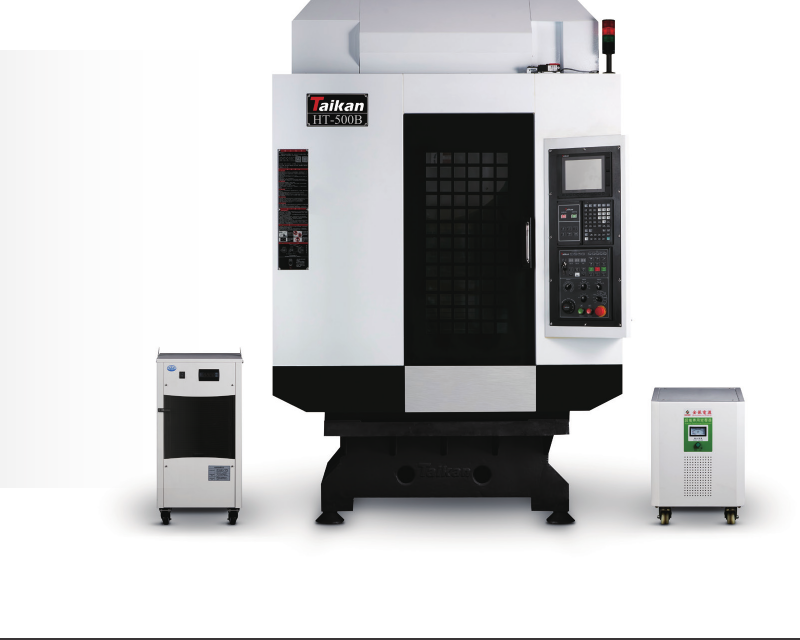

Specifications from Taikan's 2026 product brochure and subject to change. Image is representative of the B-Series.

What it's good at

• Small aluminium parts, brackets, enclosures and manifolds

• Drill-and-tap work in high volumes

• A second, faster machine alongside a BT40 VMC

What Caerix includes

• Delivery, installation and levelling

• Commissioning to AS/NZS 4024 and a ballbar test, with the report supplied

• Local parts, service and warranty support

• Optional Turnkey Process Blueprint to get your first job running sooner

Other versions

The HT-500BH (taller Z, 460 mm), HT-600B and HT-700B (longer X), and the larger T-Series tapping centres with up to 2,000 mm of X travel. Ask us for specs →
