Vertical machining centre · Taikan S-SeriesTaikan T-V856S

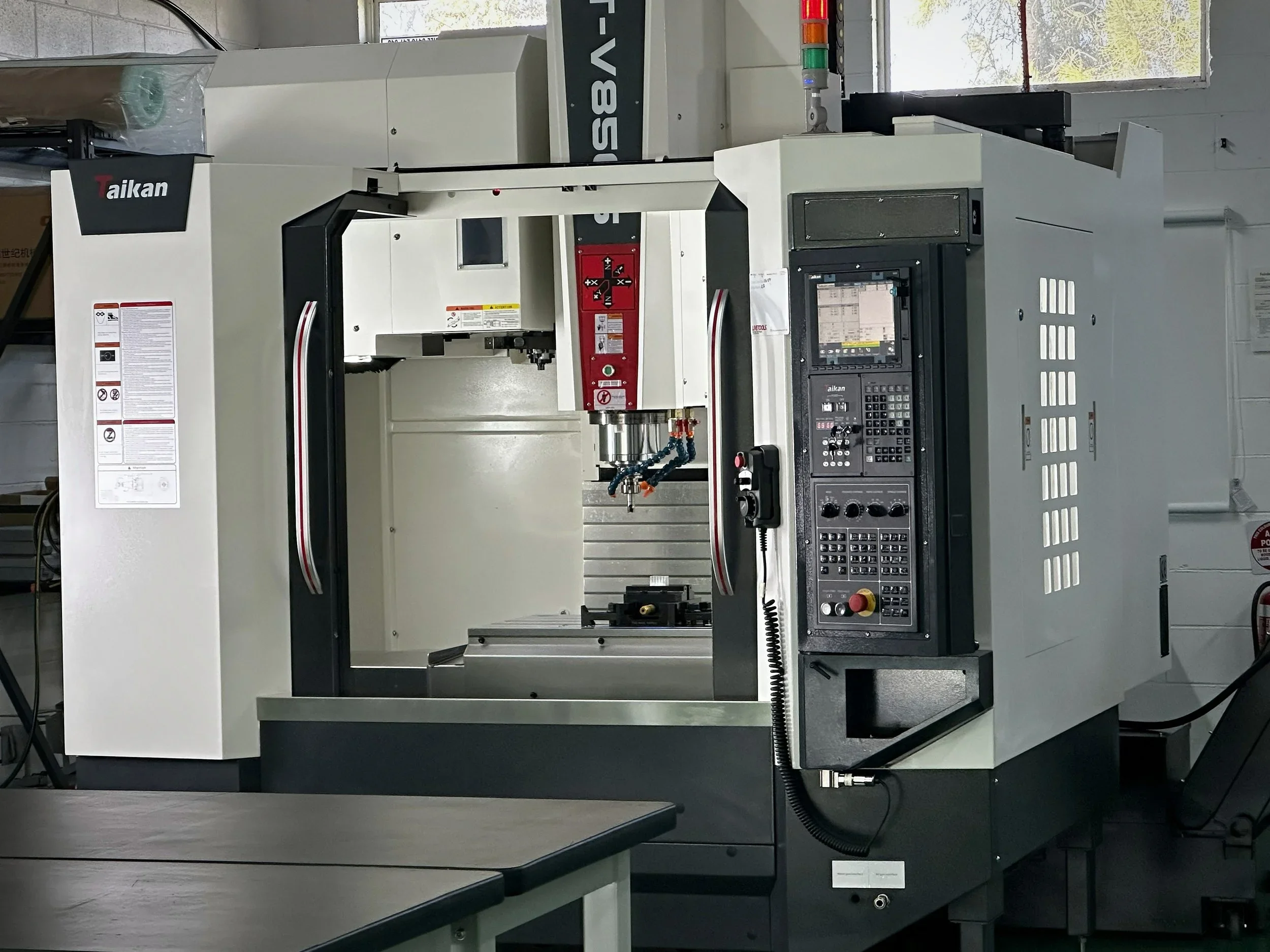

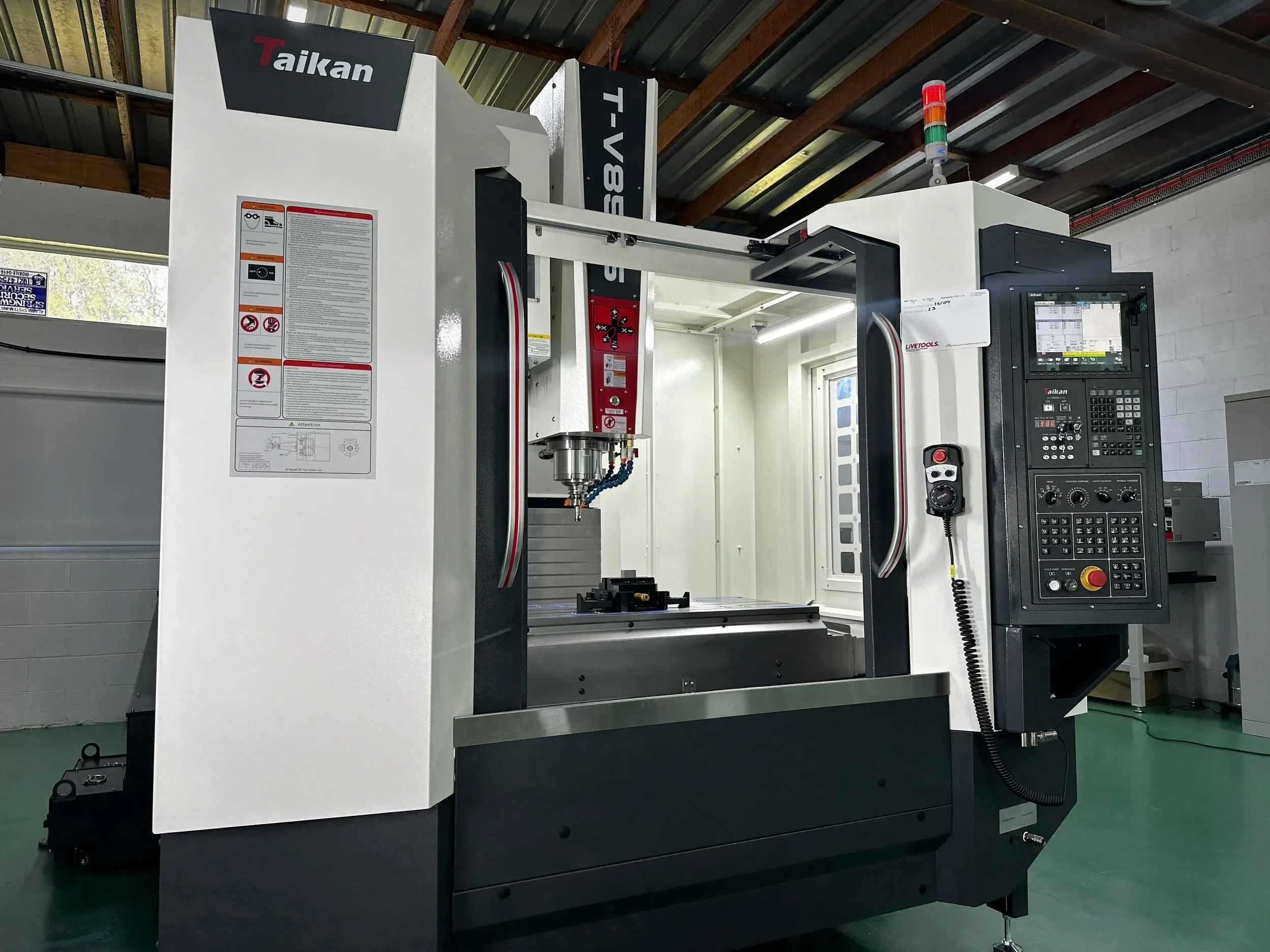

The all-rounder for job shops and toolrooms. Rigid, fast and simple to run, and you can see one cutting in our Blue Mountains workshop.
Price on application · Get price and lead time →
Built for everyday production

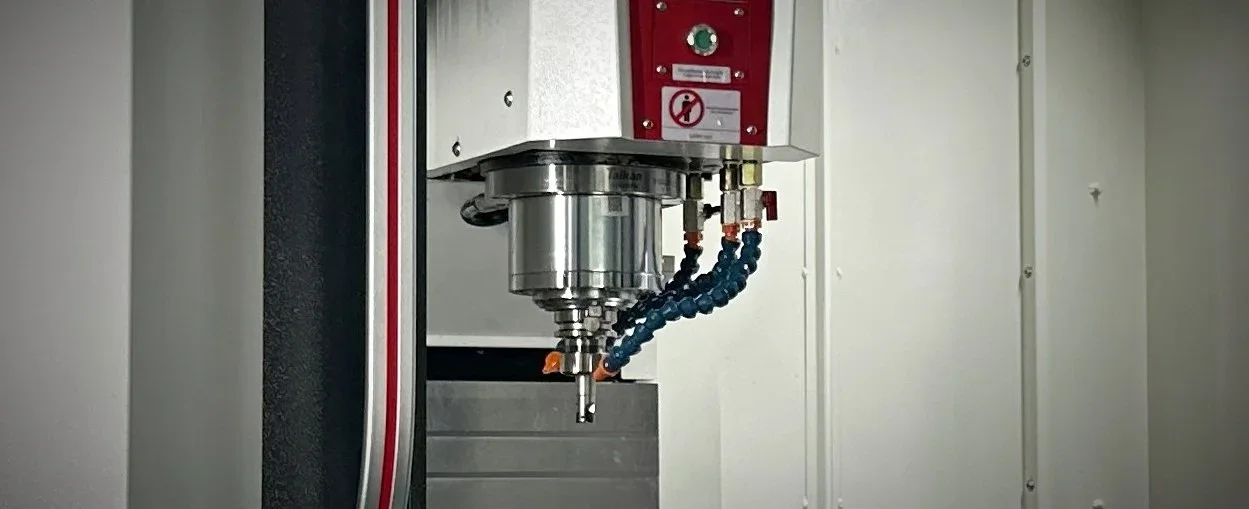

The T-V856S is the core model in Taikan's S-Series of vertical machining centres. Cast-iron castings from resin-sand moulds keep it stable and vibration-free, linear guides on all three axes keep it accurate, and the 12,000 rpm direct-coupled spindle takes standard BBT40 tooling. The 24-tool arm-type changer is encoder-controlled for quick, repeatable tool changes.
Key specifications

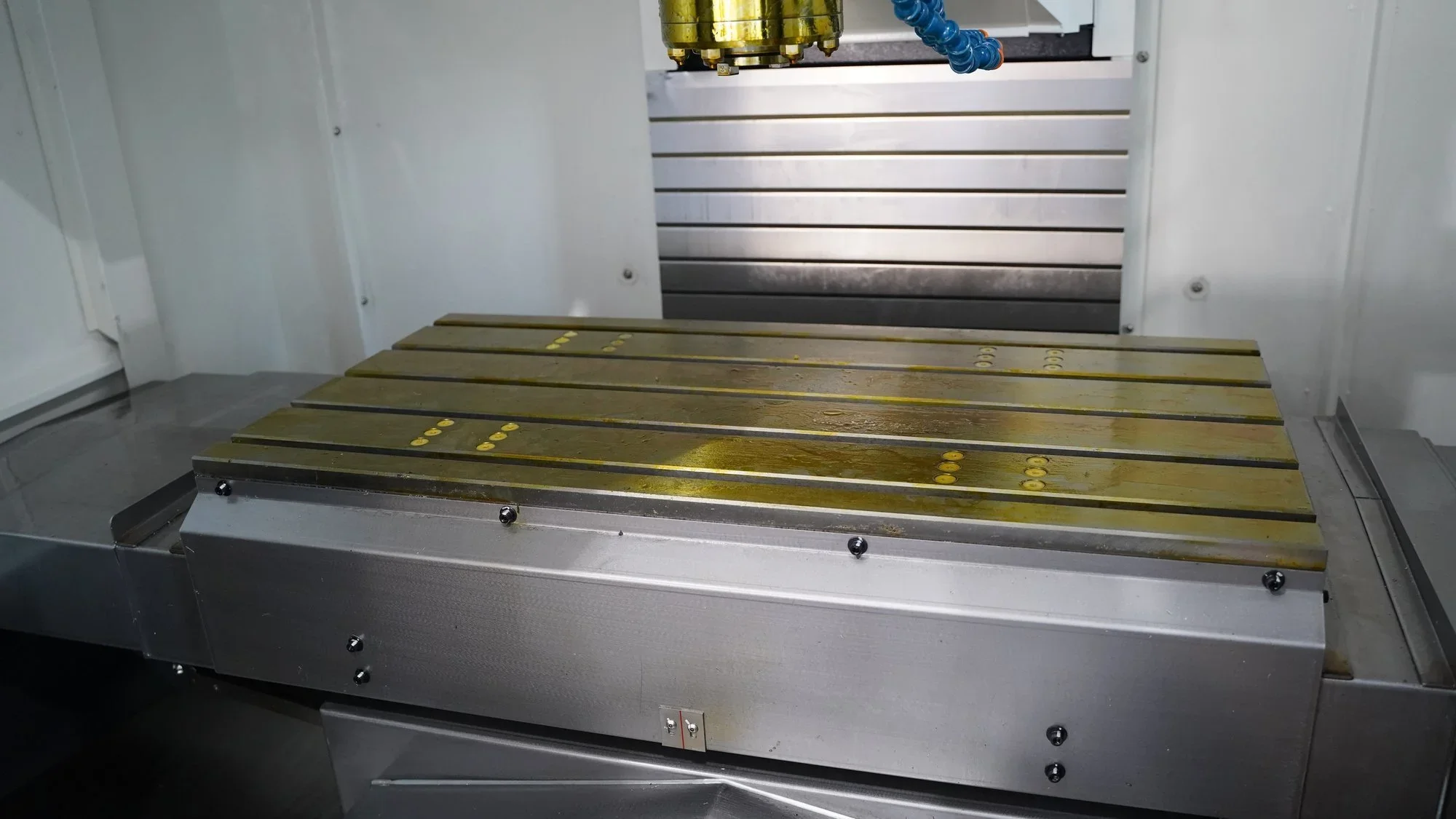

Table size: 1,000 × 500 mm
Travel X / Y / Z: 800 / 550 / 600 mm
Spindle: direct-coupled, 12,000 rpm
Spindle taper: BBT40
Tool capacity: 24, arm-type changer
Guideways: linear, all three axes

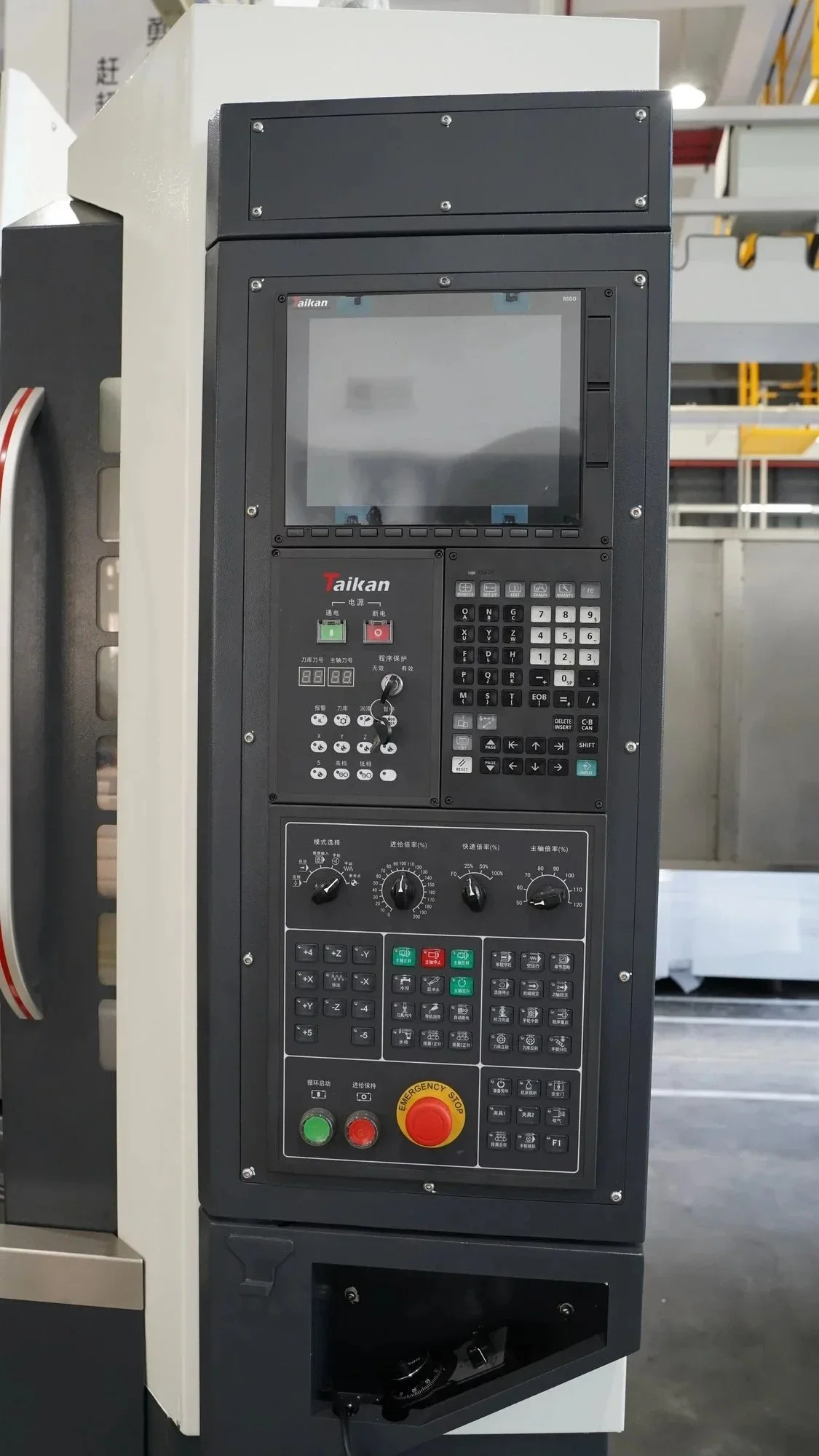

Control: Mitsubishi M80
Certification: CE
Specifications from Taikan's 2026 product brochure and subject to change. Your quote confirms the exact configuration.
What it's good at
General job-shop and toolroom work
Prototypes and low-to-mid volume production
Housings, plates, brackets, fixtures and mould components
What Caerix includes
Delivery, installation and levelling
Commissioning to AS/NZS 4024 and a ballbar test, with the report supplied
Local parts, service and warranty support
Optional Turnkey Process Blueprint: process documentation to get your first job running sooner
Need more travel?
The same S-Series platform comes in larger sizes, including the T-V1055S (1,000 / 550 / 600 mm), T-V1165S (1,100 / 650 / 600 mm), T-V1265S (1,200 / 650 / 600 mm) and T-V1270S (1,200 / 700 / 700 mm). Ask us for specs →
See it cutting
Book a visit to our workshop or a live video demo on a working T-V856S. Get in touch →
